Scotch® Rubber Splicing Tape 23 is a highly conformable 0.76 mm thick, self-amalgamating EPR (Ethylene Propylene Rubber) base for rubber splicing. ...

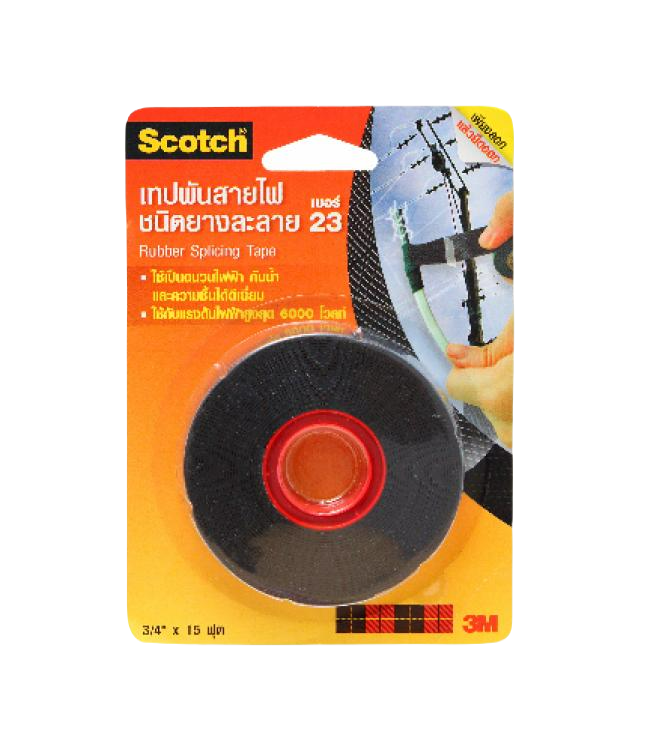

Scotch® Rubber Splicing Tape 23 is a highly conformable 0.76 mm thick, self-amalgamating EPR (Ethylene Propylene Rubber) base for rubber splicing. It is designed to splice and terminate cables with overload temperatures of 266 degrees F(130 degree C), due to dissipating heat affectively. The snakeskin liner is easily removed when applying the tape, to allow the self-fusing ethylene propylene rubber, high insulating voltage tape.
Features
Features a special polyester liner that will not stick when unwinding
Stretch up to 100% for void-free, moisture-resistant insulation
Non-vulcanizing and shelf stable
Highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape
Ideal for moisture sealing electrical connections
Black
Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
Temperature rated for continuous adhesion to 90°C
Stretch up to 100% for void-free, moisture-resistant insulation
Special polyester liner keeps tape protected and clean during application
Non-vulcanizing and shelf stable
ATM ASTM Approved & RoHS 2002/65/EC Compliant
Application
Use Scotch® Rubber Splicing Tape 23 for low or high voltage applications and joints up to 69 kV.
This 0.76 mm thick, highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape can be stretched up to 100% for void-free, moisture-resistant insulation.
It’s non-vulcanizing and shelf-stable with excellent electrical properties.
Featuring a special polyester liner that will not stick when unwinding, this tape is ideal for moisture sealing electrical connections.
